Innovate SCG-1 Solenoid Boost Controller & Wideband Gauge

Innovate SCG-1 boost controllers integrate the industry-leading DirectDigital wideband air/fuel ratio technology. The company paired its advanced oxygen sensor control technology with its all new proprietary solenoid control that provides superior boost control accuracy, response, and safety. A user-programmable shift light was added to the entire package housed in a compact gauge body for ease of installation and use. As with all of Innovate's air/fuel ratio products, the SCG-1 boost controllers utilize only 100 percent digital wideband air/fuel ratio technology to provide real-time feedback to the SCG-1. This air/fuel information is displayed on an integrated OLED display, along with manifold pressure and wastegate duty status. The air/fuel ratio information is also used to provide a user-definable boost cut that enhances the safety margin over most competitors' offerings which rely only on overboost threshold. Innovate SCG-1 boost controllers have a fully-programmable analog output, ideal for applications using standalone ECUs, piggyback ECUs, or external data loggers.

Features

• All-in-one, intelligent boost control and wideband air/fuel ratio gauge

• Controller and display housed in 52mm (2 1/16”) diameter gauge body

• Interchangeable faceplates & bezels: Black & silver bezel, black & white faceplates included

• No PC required for configuration

• OLED user configurable display

• Includes high-resolution solenoid

• 4 BAR map sensor, pressure range -29 inHG to 43.5 PSI (-1 to 3 BAR)

• User programmable boost cut safety using Air/Fuel and Pressure references

• Programmable solenoid duty cycle with separate gain control function

• Peak hold function

• Patented DirectDigital™ wideband sensor control, 100% digital wideband air/fuel ratio technology!

• Wideband O2 Compatible with several fuel types (Leaded, Unleaded, Diesel, E85 & more)

• Ability to calibrate O2 sensor for maximum accuracy

• Configurable linear 0-5v analog output for wideband O2 for use with piggy back or stand alone ECU’s as well as external data loggers

Applications

• Universal

What's In The Box?

• SCG-1 gauge

• Wideband oxygen O2 sensor

• 8 ft sensor cable

• O2 sensor weld-on bung

• 4 BAR Map sensor

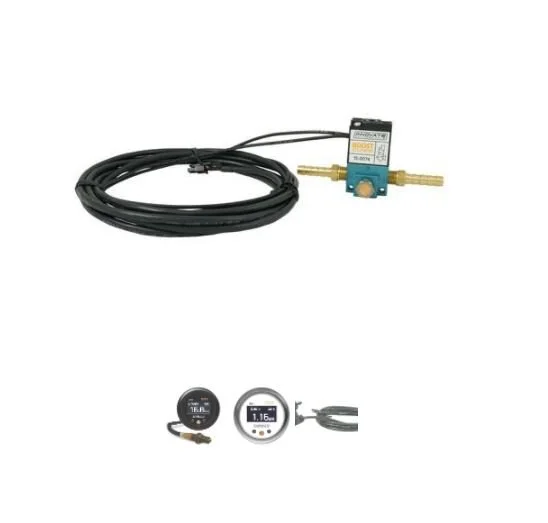

• Solenoid w/bracket

• Vacuum hose kit

• Black/Silver bezel

• Black/White faceplate

• Serial program cable

• Installation manual

Warranty

• Manufacturer Standard Warranty
